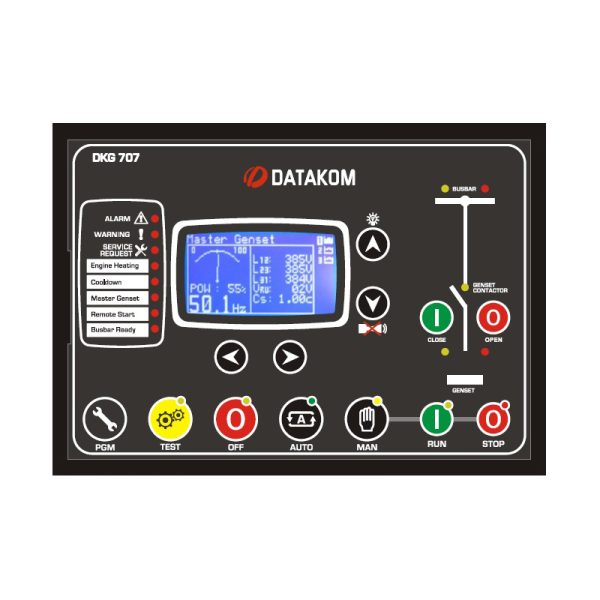

DKG-707 CONTROLEUR DE GROUPE ELECTROGENE SYNCHROSCOPE

Contrôleur de groupe électrogéne à démarage automatique et manuel avec synchroscope et interface J1939 DKG-707 MULTI GENSET PARALLELLING UNIT The DKG-707 is a comprehensive Manual and Remote Start unit for multiple generating sets operating in parallel with load sharing.The unit supports both diesel and gas gensets based on electronic and non-electronic engines. Up to 8 gensets may be combined together using DKG-707 units without the need for extra modules. The communication between modules is made with the Datalink connection. Telechargement: duct Brochure User Manual Automatic and manual start Multi genset synchronization (up to 8 gensets) Multi genset load sharing (up to 8 gensets) Both active and reactive load sharing J1939 electronic engine monitoring and control Various engine brands and models available Gas engine support True RMS measurements Complete genset power measurements Busbar voltages and frequency measurements Dead bus sensing             Synchroscope Built-in Governor control with external reference Fully isolated built-in AVR control Fully isolated datalink communication port Magnetic pick-up input Load dependent automatic Start/Stop Load dependent quick and delayed start Soft loading and unloading of gensets Equal aging of gensets Voltage transformer ratio for MV applications Engine Idle speed control Load shedding, load adding AVR and GOV up/down relay functions Droop operation capability Earth fault current monitoring Voltage and current unbalance monitoring Periodic maintenance request indicator Battery backed-up real time clock Built-in daily, weekly, monthly exerciser 500 event logs with time stamp and full snapshot Statistical counters Weekly operation schedule programs Field adjustable parameters Password protected front panel programming User selectable screen formats Software upgrade from PC (USB adapter needed) Free MS-Windows Remote monitoring SW: -monitoring, download of parameters     -download of software updates High visibility, blue color 128×64 pixels graphic LCD User friendly graphic indicators and bar graphs Dual language support Customer logo display capability Programmable PLC functions Protected semiconductor digital outputs Output expansion capability Configurable analogue inputs: 4 Configurable digital inputs: 12 Configurable digital outputs: 8 Configurable led indicators: 5 Led/Relay output functions selectable from list Survives cranking dropouts Dimensions: 235 x 167 x 48mm (WxHxD) Sealed front panel (IP65) Plug-in connection system for easy replacment
