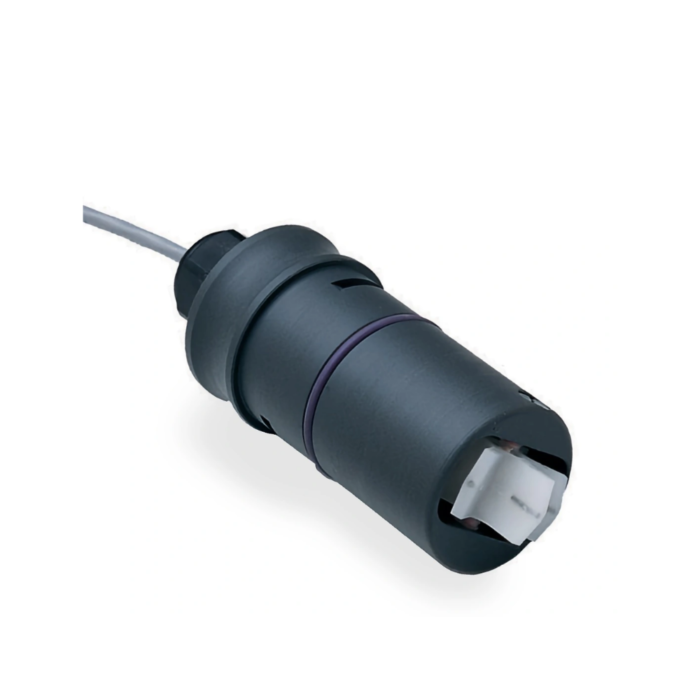

Seametrics IP810P Fixed Depth Insertion Paddlewheel Meter, PVC, 1/2″-3″

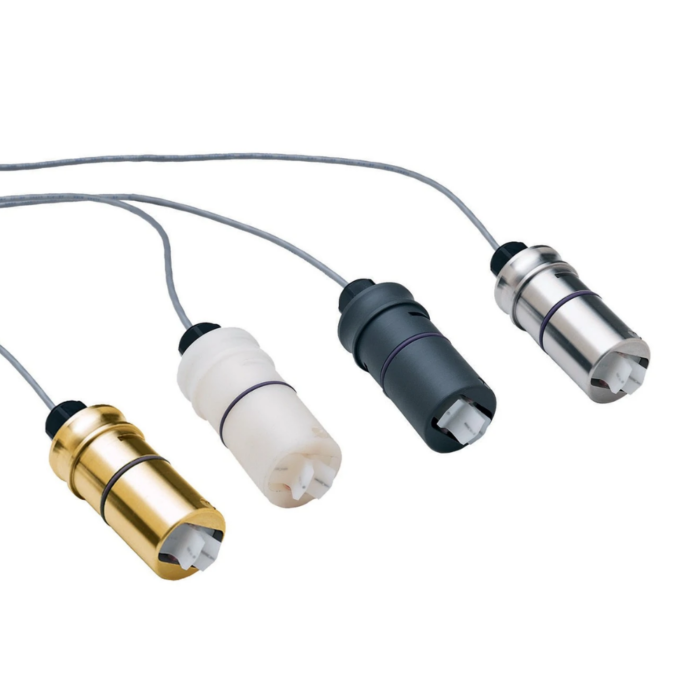

Headline IP800Fixed Depth Insertion PaddlewheelThe IP800-Series are impeller (or “paddlewheel”) insertion meters designed for use with a wide variety of liquids in pipe sizes 1/2” to 8”. Sensors are available in brass, 316 stainless steel, PVC, and polypropylene. Bodies are machined from a solid rod for maximum precision. High quality jewel bearings and nickel-bound tungsten carbide shafts are used for extreme low friction and long life. Low-flow performance is good, although other Seametrics flow meters are recommended where extremely low flows are being measured. Features & Benefits Features:High-quality ruby bearings for excellent low-flow performance and long lifeOne easily-replaced moving partPickup exerts no magnetic drag on the rotorSquare-wave frequency output can connect directly to PLC's or counter controlsIndicator or transmitter can be mounted on the flowmeter or remoteFittings are available in a wide variety of materials and sizes Additional Notes SpecsValue      Pipe Size1/2” to 8”      PowerLow Power: 6-36 Vdc/< 2 mA Micropowered (-04 Option): 3.1-16 Vdc/60 μA @ 3.6 Vdc      SensorLow Power: Digital Magnetoresistive Micropowered (-04 Option): Giant Magnetoresistance (GMR)      Optional Housing MaterialsPowder-coated cast aluminum      Sensor Body MaterialsBrass, 316 Stainless Steel, PVC, or Polypropylene      O-ring MaterialsEPDM (Viton optional)      Rotor MaterialsPVDF (Kynar)      Shaft MaterialsKynar /Tungsten Carbide (Kynar /Ceramic or Kynar/Silicon Carbide optional)      Bearings MaterialsRuby jewel      Flow Velocity0.3 to 30 ft/sec (0.09 to 9.14 m/sec)      Accuracy± 1.5% of full scale      Output Transistor Maximum Current Sinking150mA (low power version only)      Cable#22 AWG 3-con, 18’ (6m); 2,000’ (610m) maximum cable run Note: 50’ (15m) maximum for battery powered or micropowered versions.      EnvironmentalSee meter mounted electronics specification for rating      RegulatoryMark
